Munsch Pumps GmbH has through generations developed and produced centrifugal pumps in fluoroplastic. Their pumps are specially designed to handle aggressive liquids containing a large number of particles. They handle applications like scrubber and chemicals with ease and are widely used for sulphuric and hydrochloric acid. Munsch pumps comply with EN22858 and consist of FDA approved materials such as PP, PE or PVDF.
The pumps are available with or without casing armor in cast iron, and with mechanical seals in single or double construction. Moreover, they are available without a mechanical seal.
To learn more visit : MUNSCH
Horizontal pumps in fluoroplastics
| Model | Max. Flow | Max. Head | Max. Operating Pressure | Temperature | Download | |
|---|---|---|---|---|---|---|
 | NP | 1200 m³/h | 100 meter | 10 bar | -20°C - 100°C | Datasheet |
 | NP-B | 110 m³/h | 70 meter | 10 bar | -20°C - 100°C | Datasheet |
 | NPC | 150 m³/h | 80 meter | 16 bar | -20°C - 150°C | Datasheet |
 | NPC-B | 150 m³/h | 80 meter | 16 bar | -20°C - 150°C | Datasheet |
 | NPC Mammut | 2000 m³/h | 70 meter | N/A | -20°C - 100°C | Datasheet |

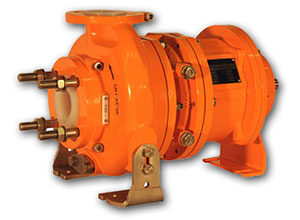

 | CM | 180 m³/h | 85 meter | 16 bar | -20°C - 150°C | Datasheet |

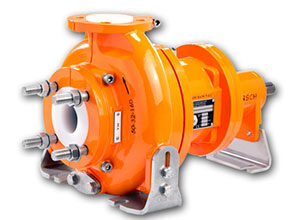

 | ECM | 70 m³/h | 70 meter | 16 bar | -20°C - 150°C | Datasheet |

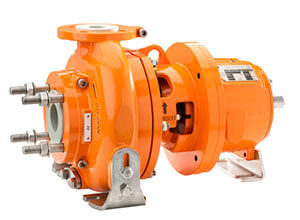

 | CS | 200 m³/h | 90 meter | 16 bar | -20°C to +180°C | |

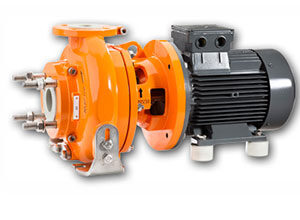

 | CS-B | 90 m³/h | 60 meter | 16 bar | -20°C to +180°C |
Vertical pumps in fluoroplastics
| Model | Max. Flow | Max. Head | Max. Operating Pressure | Temperature | Download | |
|---|---|---|---|---|---|---|
 | TNP-KL | 560 m³/h | 90 meter | 10 bar | 0°C - 100°C | Datasheet |
 | TNP | 110 m³/h | 45 meter | 10 bar | 0°C - 100°C | Datasheet |
 | TPC | 250 m³/h | 65 meter | 10 bar | 0°C - 100°C | Datasheet |
| TPC-M | 200 m³/h | 60 meter | 10 bar | 0°C - 100°C | Datasheet |
 | TPC-B | 110 m³/h | 45 meter | 10 bar | 0°C - 100°C | Datasheet |
